| Type | Μητρική Πλακέτα |
| Manufacturer | ASRock |

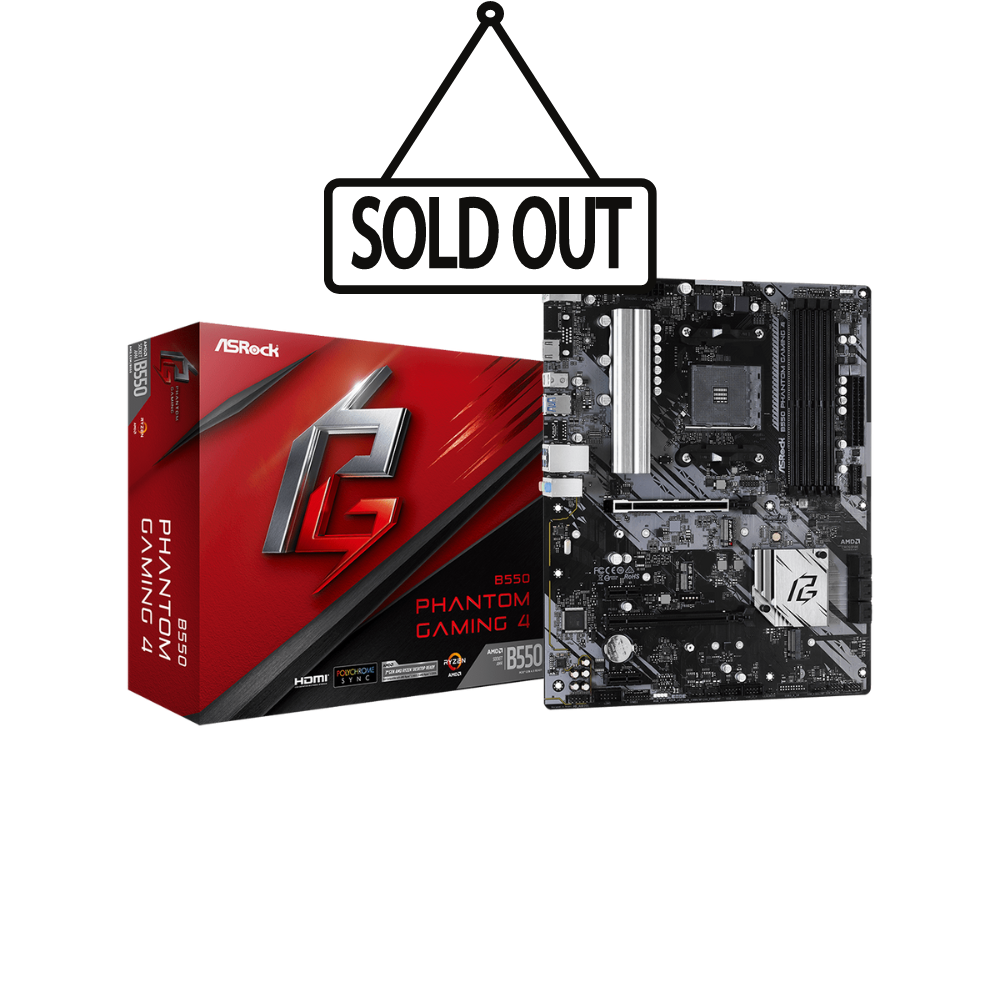

| Model | B550 PHANTOM GAMING 4 |
| Socket | AM4 |
| Chipset | B550 |
| Motherboard size | ATX |
| RAM slots | 4 |
| Max Memory RAM | 128 GB |
| Drive slots | 1x M.2 PCIe 4.0 x4 (2280), 1x M.2 PCIe 3.0 x2/SATA 3 (2280), 6x SATA 3 (RAID 0 / 1 / 10) |
| Expansion slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x16(x4 mode), 1x PCIe 3.0 x1, 1x M.2 Key E (2280) for WiFi/Bluetooth module |
| Internal Ports | 1x24 pin ATX main power, 1x 8+4 pin ATX 12V power, 2x CPU fan (1x Water pump), 4x System/Water pump fan, 1x Front panel, 1x Front audio panel, 1x USB 3.2 Gen1, 2x USB 2.0, 1x SPI TPM, 1x COM, 1x Power LED & Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers |
| External Ports | 2x Antenna ports, 1x PS/2 keyboard-mouse, 1x HDMI, 6x USB 3.2 Gen1, 1x RJ45 (1 Gbps), 3x Audio jack |
| Other Functions | Supports XMP Memory Profile, Gaming Armor, ASRock Super Alloy (XXL Aluminum Alloy Heatsink, Premium 50A Power Choke, 2oz Copper PCB), ASRock Steel Slot Gen4, ASRock POST Status Checker, ASRock Full Spike Protection (for all USB, Audio, LAN Ports), Supports Surge Protection, ASRock Live Update & APP Shop, Digi Power design, 8 Power Phase design, 7.1 audio channel, Supports Microsoft PlayReady, ASRock Polychrome SYNC, Nahimic Audio |
| Εγγύηση | 2 Years |
