| Type | Μητρική Πλακέτα |
| Manufacturer | MSI |

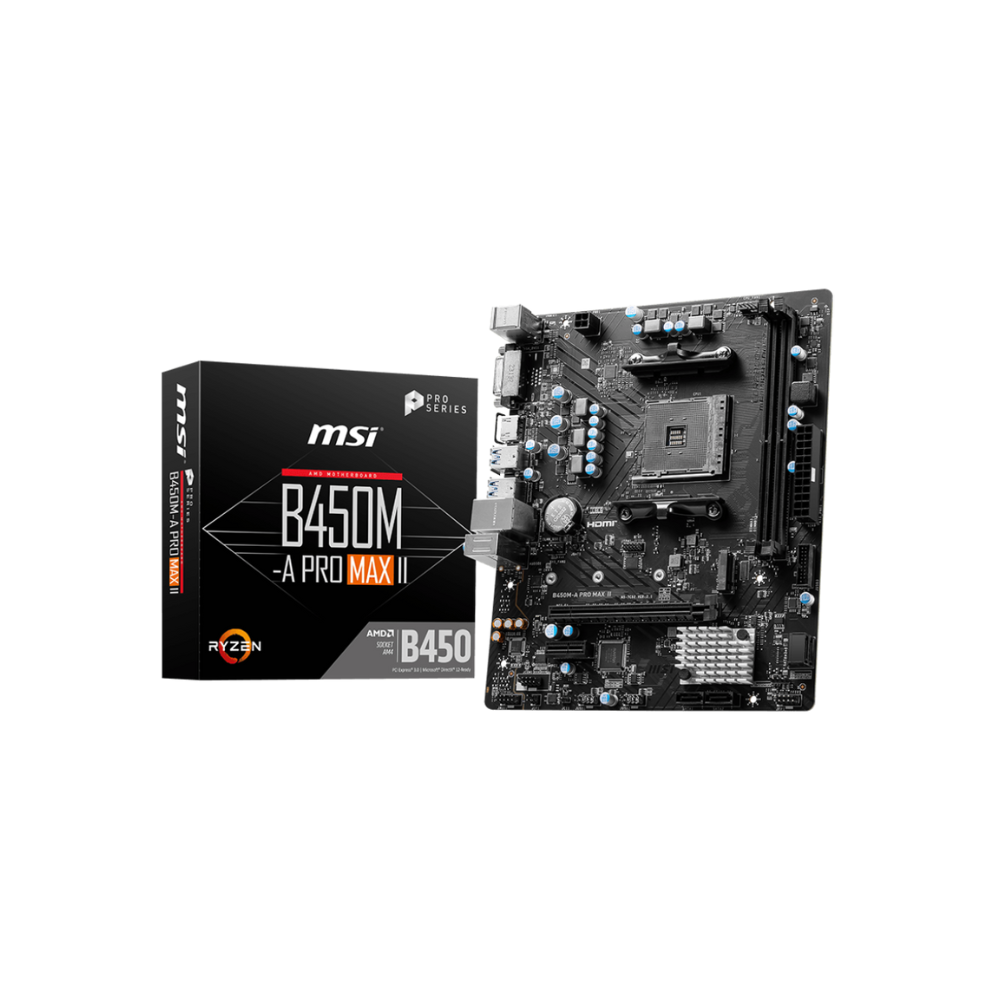

| Model | B450M-A PRO MAX II |
| Socket | AM4 |
| Chipset | B450 |
| Motherboard size | Micro-ATX |
| RAM slots | 2 |
| Max Memory RAM | 64 GB |
| Drive slots | 1x M.2 PCIe 3.0 x4/SATA (2280), 4x SATA 3 (RAID 0 / 1 / 10) |
| Expansion slots | 1x PCIe 3.0 x16, 1x PCIe 2.0 x1 |
| Internal Ports | 1x24 pin ATX main power, 1x 4 pin ATX 12V power, 1x CPU fan, 1x System fan, 1x Front panel, 1x Front audio panel, 1x USB 3.1 Gen.1, 2x USB 2.0, 1x TPM 2.0, 1x COM, 1 x Chassis Intrusion |
| External Ports | 1x PS/2 keyboard, 1x PS/2 mouse, 1x HDMI, 1x DVI-D, 4x USB 3.2 Gen1, 2x USB 2.0, 1x RJ45 (2.5 Gbps), 3x Audio jack |
| Other Functions | Audio Boost, 7.1 audio channel, X-Boost, Core-Boost (Digital Power Phase), Solid and heavy heatsink |
| Εγγύηση | 3 Years |
